| Heating Capacity | Certification | SKU | Price |
|---|---|---|---|
| 5.5 kW | None | JL:9421502.16 |
$75,119
|
| 5.5 kW | US NRTL Certified | JL:9421502.16.CSA/UL |
$78,070
|
| 10 kW | None | JL:9421502.16.T |
$84,454
|
| 10 kW | US NRTL Certified | JL:9421502.16.T.CSA/UL |
$87,321
|

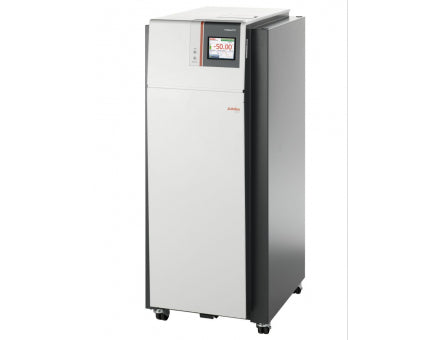

The rapid compensation of reactions even at higher ambient temperatures is the domain of the water-cooled W50 units. High heating and cooling capacity paired with powerful pumps. Both systems are water-cooled, the W50t offers increased heating capacity of 10 kW.
Features:
| Type | Circulating |
| Incubation | Yes |
| Refrigeration | Yes |
| Temp Range (°C) | -50 ... +250°C |
| Capacity (L) | N/A |
| Circulation | External Only |
| Brand | Julabo |
| MaxFlow Rate (l/min) | 76 |
| Temp Stability (°C) | ±0.05 to 0.1°C |
| Timer | Yes |
| Alarms | Yes |
| Digital or Mechanical | Digital |
| Data connection | Yes |
| Tank Material | N/A |
| Sample Agitation | No |
| Media Racks Available | No |
| Warranty (years) | 1 |
| Weight (lb) | 463 |
| Dimensions | 20.9 x 26.2 x 49.6 in. | 20.9 x 26.2 x 49.6 in. |
| Filling volume expansion vessel | 11.5 l | 11.5 l |
| Internal usable expansion volume | 7.5 l | 7.5 l |
| Minimal process volume | 7.5 l | 7.5 l |
| Active heat exchanger volume | 3.5 l | 3.5 l |
| Weight | 463 lbs | 463 lbs |
| Pump connections | M30x1.5 male | M30x1.5 male |
| Cooling Water Connection | G¾ in. | G¾ in. |
| Working temperature range | -50.0 ... +250.0 °C | -50.0 ... +250.0 °C |
| Temperature stability | +/-0.05 ... +/-0.1 °C | +/-0.05 ... +/-0.1 °C |
| Setting the resolution of the temperature display | 0.01 °C | 0.01 °C |
| Temperature display resolution | 0.01 °C | 0.01 °C |
| Ambient temperature | +5.0 ... +40.0 °C | +5.0 ... +40.0 °C |
|
Data based on voltage version: |
208V/3PPE/60Hz (Without Plug) |
208V/3PPE/60Hz (Without Plug) |
| Heating capacity | 5.5 kW | 10 kW |
| Cooling capacity (Medium: Ethanol) | 200°C/7kW | 20°C/7.5kW | 0°C/6.5kW | -10°C/5 kW | -20°C/3kW | -30°C/1.8kW | -40°C/0.6kW | 200°C/7kW | 20°C/7.5kW | 0°C/6.5kW | -10°C/5 kW | -20°C/3kW | -30°C/1.8kW | -40°C/0.6kW |
| Pump capacity flow rate | 35 ... 76 l/min | 35 ... 76 l/min |
| Pump capacity flow pressure | 7 ... 43.5 psi | 7 ... 43.5 psi |
| Viscosity max. | 50 cST | 50 cST |
|
Refrigerant stage 1 |
R507 | R507 |
| Global Warming Potential for R507 | 3985 | 3985 |
| Filling volume | 0 g | 0 g |
| Carbon dioxide equivalent | 0 t | 0 t |
| Cooling of compressor | 1-stage Water | 1-stage Water |
| Cooling water pressure max. | 87 ... 79.8 psi | 87 ... 79.8 psi |
| Cooling water difference pressure | 7.3 bar | 7.3 bar |
| Cooling water temperature max. | 30 °C | 30 °C |
| 1.0Cooling water consumption | 8 ... 12 l/min | 8 ... 12 l/min |
| Sound pressure level | 65 dbA | 65 dbA |
| Classification according to DIN12876-1 | Classification III (FL) | Classification III (FL) |
| IP Code according to IEC 60529 | IP 20 | IP 20 |
| Pump type | Centrifugal Pump (Magnetically coupled) | Centrifugal Pump (Magnetically coupled) |
| External pt100 sensor connection | integrated | integrated |
| 2nd external Pt100 sensor connection | accessory | accessory |
| Integrated programmer | 8x60 steps | 8x60 steps |
| Temperature control | ICC | ICC |
| Absolute temperature calibration | 3 Point Calibration | 3 Point Calibration |
| Temperature display | 5.7" TFT Touchscreen | 5.7" TFT Touchscreen |
| Temperature setting | Touchscreen | Touchscreen |
